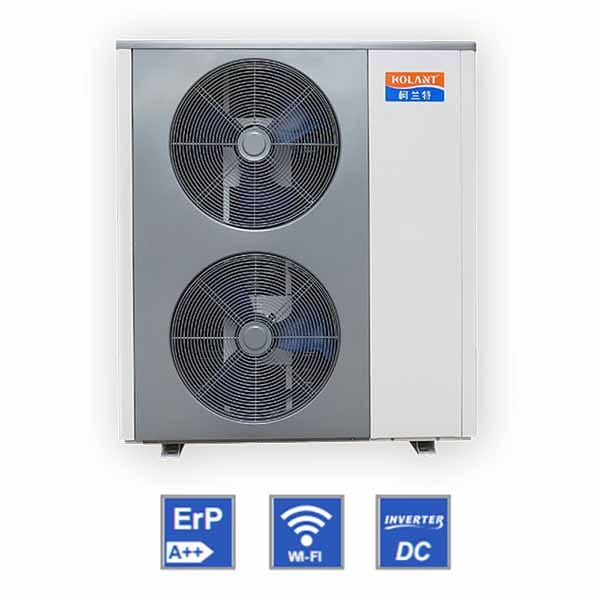

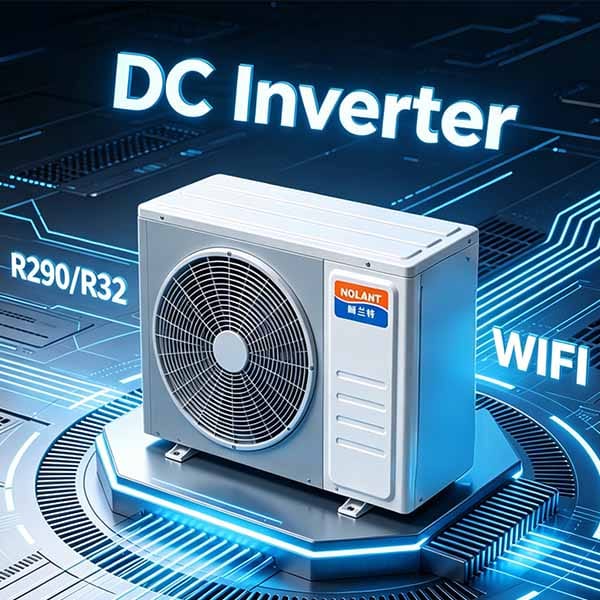

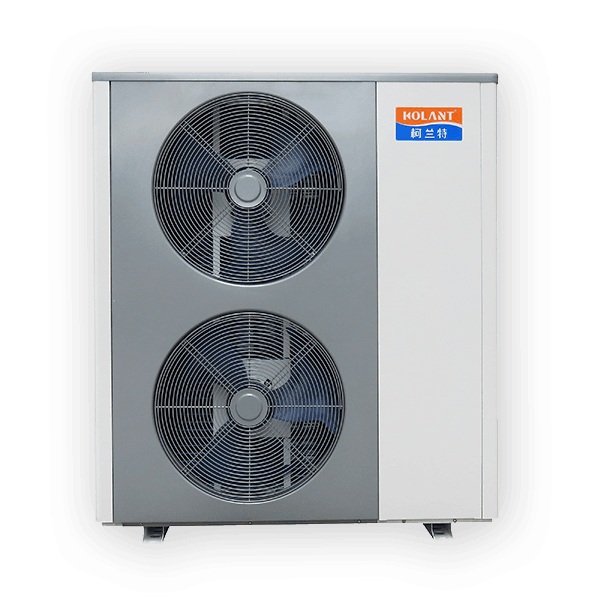

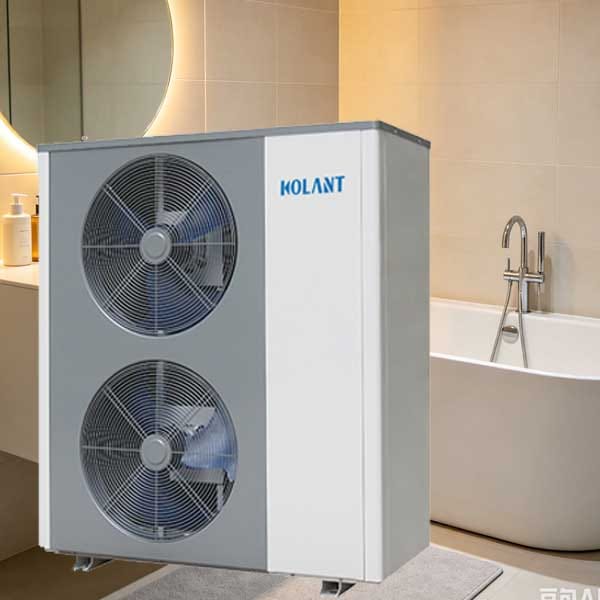

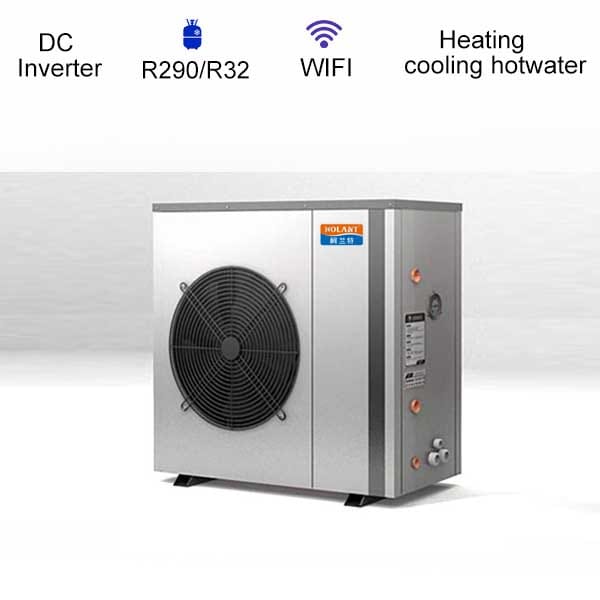

Inverter Heating Cooling Heat Pump-9-20KW
- KOLANT DC inverter heat pump is an overall energy solution for your home.
- Heating Cooling + Domestic Hot Water i én løsning.
- Compatible with Solar thermal, Solar PV
- Enery Class A++ with R410a
- Enery Class A+++ with R32 and R290 refrigerant
- European standard inverter varmepumpe
- With Wifi control function

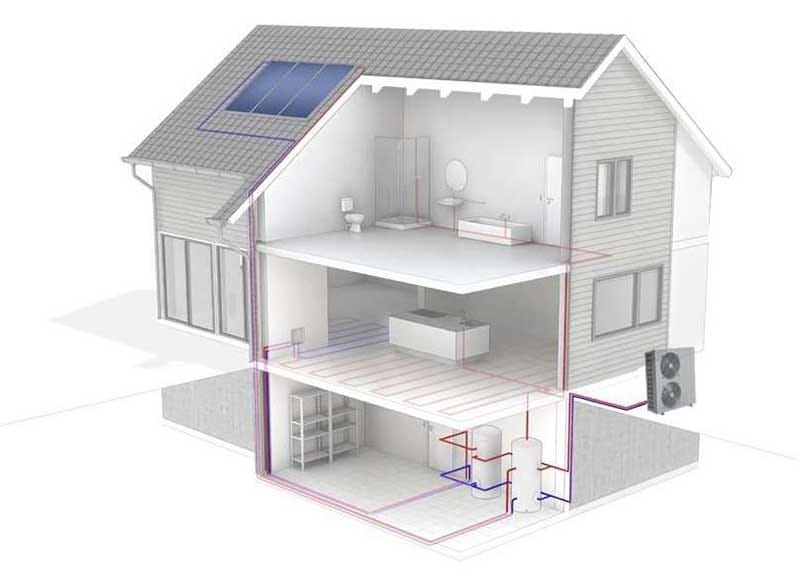

KOLANT DC inverter heat pump is intended to provide an overall energy solution for your home. it heats or cools your home and at the same time produce domestic hot water to meet all your needs though one device.
- Solar ready: Compatible with solar thermal panels to be the second heat source of the system.
- Hot water: Domestic hot water is available all year round.
- Heating: Suitable for floor heating, radiator heating or fan coil heating.
- Cooling(optional): Cooling function is available when it is necessary and suitable for fan coil cooling or area cooling.
DC inverter technology
Standard heat pumps are either ON or OFF. No matter how much the current heat demand is, these heat pumps run at full load even if only for a short time. As any motorist knows, frequently stopping and starting is not a particularly efficient way to drive, as it sends consumption levels through the roof.
In contrast, KOLANT DC inverter heat pump employs not only a DC inverter compressor but an intelligent control system, which operates much more evenly and efficiently. With inverter technology, the heat pump matches its output to the prevailing heat demand with a high degree of precision. Instead of a stop-start pattern, a much more even and energy efficient operation results, which closely mirrors the actual heat demand of the building.
Nøyaktig tilpasning til varmebehovet

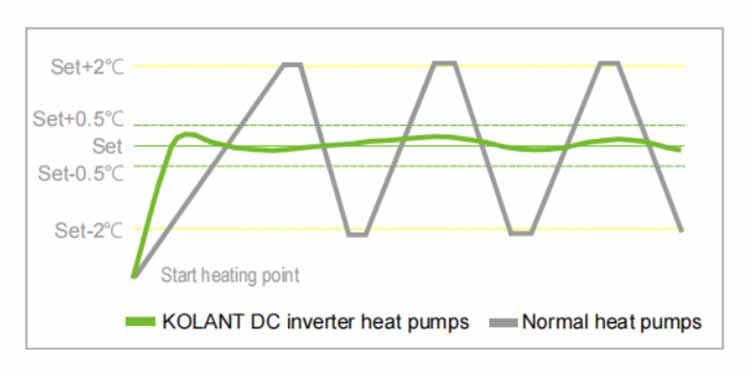

The heating capacity of KOLANT DC inverter heat pump can be precisely regulated from 20% to 100% according to the actual heat demand. Accordingly, the water temperature in the system will be steadily controlled with a very small deviation of no more than 0.5℃ so as to create a comfortable living environment.

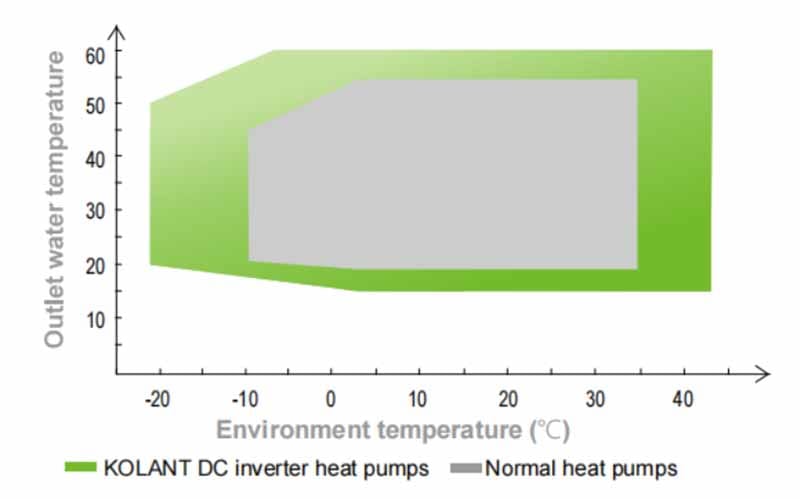

Wider Operating Range
KOLANT DC inverter heat pump can reliably and efficiently run with a bigger operating range. For example, even when the environment temperature as cold as -20℃ , the heat pump still can provide warm water with high water temperature and high heating output. However, normalheat pumps even can not work in this situation.
Energy efficiency class A++ (tested by TUV)
KOLANT DC inverter heating technology makes a very high energy efficiency within all the permitted operating range. For example, when the ambient air is not so cold and the heat demand is not so big, the heat pump runs with low heat output but a particularly high efficiency. However, when ambient air is extremely cold, the heat pump runs with full load to reduce or eliminate the aid of the booster heater. The intelligent control system is always trying to maximize the efficiency of the whole heating system. As a matter of fact, all KOLANT DC inverter heat pumps have energy efficiency class A++.
Energy efficiency class A++ (tested by TUV)
 |  |  | |
| Modeller | RJ-90H/N2-BPD | RJ-120H/N2-BPD | RJ-160H/N2-BPD |
| Declared heating capacity Pdh kW | 8.756 | 12.316 | 15.177 |
| Annual heating demand Qh kWh/year | 18,090 | 25,445 | 31,356 |
| Annual electricity consumption Qhe kWh/year | 4,567 | 5,987 | 7,878 |
| SCOP (seasonal coefficient of performance) | 4.14 | 4.25 | 3.98 |
| Energy efficiency class | A++ | A++ | A++ |
* Tested under average climate conditions applied for floor heating according to EN14825

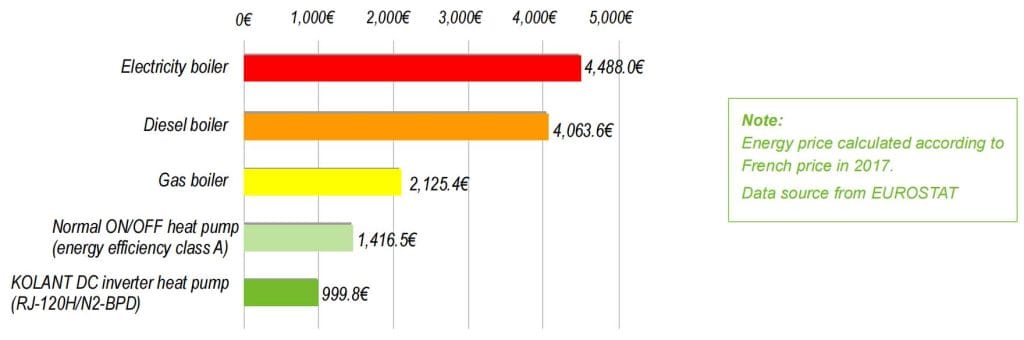

Your annual energy bill by different heating devices
| DC Inverter Heat pump | Normal ON/OFF Heat pump | Gass | Diesel | Elektrisitet | |
| Brennverdi | 860kcal/kWh | 860kcal/kWh | 860kcal/kWh | 10,200kcal/L | 860kcal/kWh |
| Energy efficiency | 425%(A++) | 300%(A) | 85% | 85% | 95% |
| Energipris | 0.167€/kWh | 0.167€/kWh | 0.071€/kWh | 1.61€/L | 0.167€/kWh |
| Annual heating demand Qh | 25,445kWh | 25,445kWh | 25,445kWh | 25,445kWh | 25,445kWh |
| Annual energy consumption | 5,987kWh | 8,482kWh | 29,935kWh | 2,524L | 26,784kWh |
| Annual energy bill | 999.8€ | 1,416.5€ | 2,125.4€ | 4,063.6€ | 4,488.0€ |
Smart WIFI-kontroll
Ved å laste ned appen vår på mobiltelefonen din kan du enkelt styre en DC-inverter-varmepumpe fra KOLANT når som helst og hvor som helst. Tenk deg at du slår på varmepumpen og stiller den inn på en behagelig temperatur før du forlater kontoret, så kan du nyte et behagelig inneklima så snart du kommer hjem. Det er fantastisk, ikke sant?
Komponenter av høy kvalitet, lang levetid
All the key components are from leading suppliers to make sure the quality and lifetime. For example, the DC inverter compressors are from Panasonic, the high efficiency plate heat exchangers are from Swep etc.

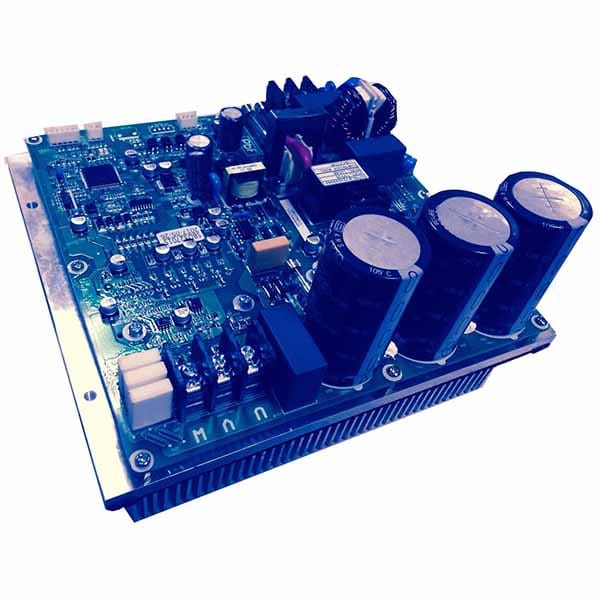

Intelligent compressor driver

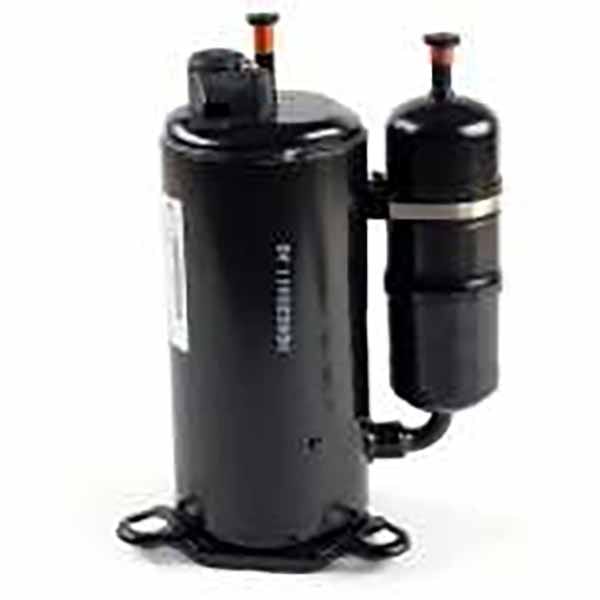

EVI Inverter Compressors
Platevarmeveksler

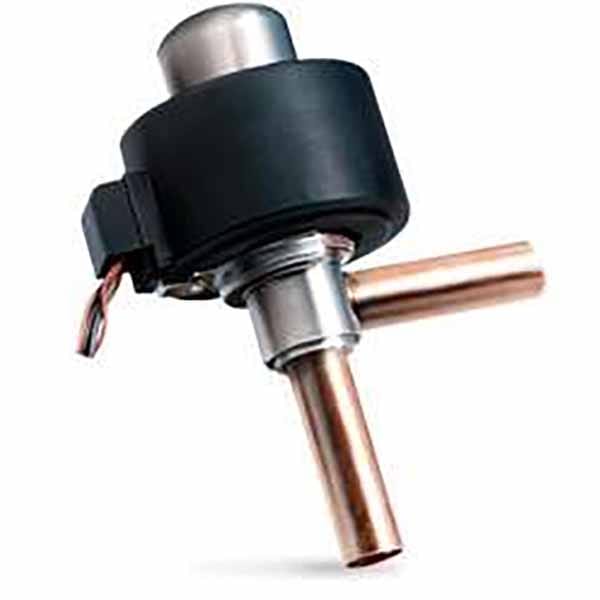

Two EEV expansion valves

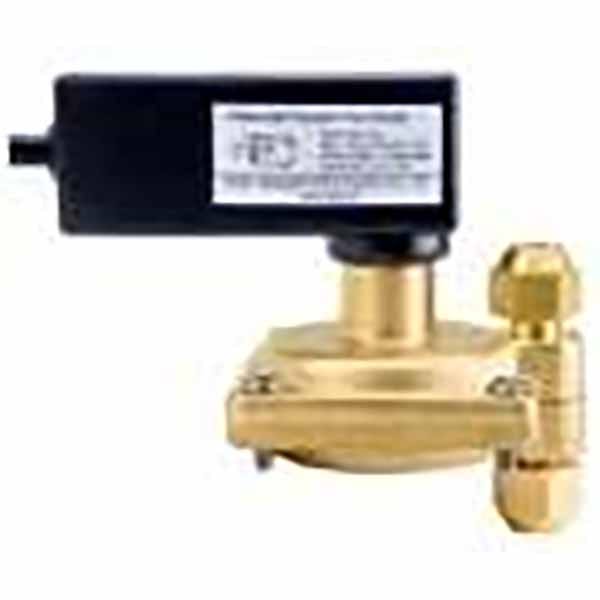

Alco water flow switch
Tekniske data
| | |  | |||
| Modell | RJ-90H/N2-BP | RJ-120H/N2-BP | RJ-160H/N2-BP | RJ-200H/N2-BPD | ||
| Performance data according to EN14511 | ||||||
| Heating output/power input/COP at A7/W35 | kW/kW/- | 8.7/1.90/4.58 | 12.0/2.70/4.44 | 15.6/3.60/4.33 | 19.5/4.61/4.23 | |
| Heating output/power input/COP at A2/W35 | kW/kW/- | 8.8/2.18/4.04 | 11.5/2.90/3.97 | 15.5/3.99/3.88 | 19.6/5.12/3.83 | |
| Heating output/power input/COP at A-7/W35 | kW/kW/- | 7.1/2.39/2.97 | 9.3/3.08/3.02 | 12.8/4.52/2.83 | 16.3/5.78/2.82 | |
| Heating output/power input/COP at A7/W45 | kW/kW/- | 8.5/2.40/3.54 | 11.4/3.12/3.65 | 14.7/4.28/3.43 | 18.8/5.52/3.41 | |
| Heating output/power input/COP at A-7/W45 | kW/kW/- | 6.8/2.87/2.37 | 9.0/3.74/2.41 | 12.3/5.46/2.25 | 14.7/6.46/2.28 | |
| Heating output/power input/COP at A7/W55 | kW/kW/- | 8.0/2.64/3.03 | 10.8/3.53/3.06 | 14.1/4.66/3.03 | 17.6/5.99/2.94 | |
| Cooling output/power input/EER at A35/W7 | kW/kW/- | 7.1/2.50/2.84 | 9.6/3.30/2.91 | 12.0/4.50/2.67 | 15.1/5.89/2.56 | |
| Energy efficiency class according to EN14825 | ||||||
| Average climate for floor heating | A++ | A++ | A++ | A++ | ||
| Average climate for radiator heating | A++ | A++ | A++ | A++ | ||
| Electrical data | ||||||
| Strømforsyning | 230V/50Hz | 230V/50Hz | 230V/51Hz | 230V/52Hz | ||
| Maximum power consumption | kW | 3.7 | 4.8 | 6 | 6.8 | |
| Maximum input current | A | 16.2 | 21 | 26.2 | 29.8 | |
| Application range | ||||||
| Water temperature range | Oppvarming | ℃ | 18~60 | 18~61 | 18~62 | 18~63 |
| Kjøling | ℃ | 8~28 | 8~29 | 8~30 | 8~31 | |
| Ambient air temperature range | Oppvarming | ℃ | -20~43 | -20~44 | -20~45 | -20~46 |
| Kjøling | ℃ | 15~43 | 15~44 | 15~45 | 15~46 | |
| Other technical data | ||||||
| Type of refrigerant | R410A | R411A | R412A | R413A | ||
| Maximum operating pressure | MPa | 4.2 | 5.2 | 6.2 | 7.2 | |
| Type of evaporator | Fine-tube | Fine-tube | Fine-tube | Fine-tube | ||
| Nominell vannstrømningshastighet | m³/t | R410A | R411A | R412A | R413A | |
| Internal water pressure loss | KPa | 19 | 20 | 22 | 24 | |
| Diameter of water connection | mm | DN25 | DN25 | DN32 | DN33 | |
| Noise level at 1 meter | dB(A) | 54 | 56 | 57 | 58 | |
| Net dimensions (W*D*H) | mm | 1115*450*926 | 115*450*1076 | 1115*450*1276 | 1115*450*1480 | |
| Packing dimensions (W*D*H) | mm | 1170*490*1055 | 1170*490*1205 | 1170*490*1420 | 1170*490*1620 | |
| Net/gross weight | kg | 100/115 | 120/138 | 130/150 | 150/170 | |
