Dual Compression Inverter 90°C High Temp Heat Pump
Kolant digital heat pump dryer with free room cooling
08/07/2024
Cold plunge heat pump chiller
08/08/2024

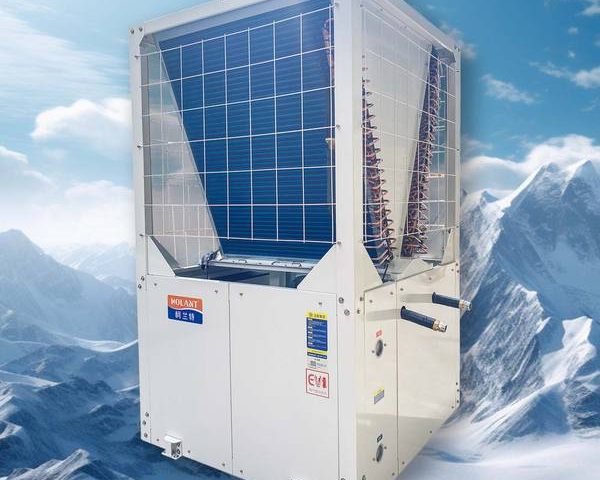

90°C high temp Heat Pump
Two-stage cascade compression technology, multi-stage refrigerant heat exchange reduces the compression ratio of the unit operation, greatly improves the low-temperature operation ability and efficiency of the unit, and innovatively realizes the ambient temperature of -35°C and the outlet water temperature of the unit reaches 90℃, replacing the heating boiler in extremely cold areas.Striking characters distinguishing from other products.
85~90°C outlet water temp at -35°C.
Both stages adopt industry-leading ultra-low temperature DC inverter and low temperature enhanced vapor injection technology.
Built-in internet WIFI control make the heat pump operation status information to be seen at a glance at thousands of miles away.
Kolant heat pump installation project reference
Kolant solar direct drive Multifunctional heat pump
The heat pump control system can be remotely controlled by mobile APP through cloud server
85 ~ 90°C outlet high water temp heat pump with reliable working to replace boiler directly.
Much higher efficiency compared with traditional electric water heater, or gas boiler with same outlet water temp.
EVI technology to enable high performance at low air temp -35C.
Built inside Modbus protocol to enable distributor or customer to use any other controller to control the heat pump.
Commercial 90°C high temp hot water cascade compression heat pump Specification
| model | KRS-650E/SN3-VFD-BP |
|---|---|
| Compressor brand | Copeland |
| Working Range | -35~43°C |
| Normal temp heating capacity(kw) | 65 |
| Normal heating power (kW) | 25.5 |
| Normal heating current(A) | 45 |
| Rated temperature heating capacity (kw) | 65 |
| Rated temperature heating power (kW) | 27.66 |
| Rated temperature heating current (A) | 49 |
| Low temperature heating capacity (kW) | 60 |
| Low temperature heating power (kW) | 31.58 |
| Low temperature heating current (A) | 56.45 |
| Maximum input power (kW) | 41.49 |
| Maximum input current (A) | 70 |
| Maximum water outlet temperature(°C) | 90 |
| Refrigerant Type | R410A+R134A |
| Noise dB(A) | 72 |
| Weight(kg) | 800 |
| Product size L x W x H (mm) | 1300×1300×2445 |
| Water pipe size | Female thread DN65 |
| Water flow (m³/h) | 11.2 |
| Water resistance value (kpa) | 60 |
| Rated COP | 2.35 |
| Power supply | 380V/50~60Hz |
Rated working conditions: ambient dry bulb temperature 7°C, water inlet temperature 60°C, water outlet temperature 65°C
Low temperature condition 1: ambient dry bulb temperature -12°C, water inlet temperature 60°C, water outlet temperature 65°C
Low temperature condition 2: ambient dry bulb temperature -12°C, water inlet temperature 75°C, water outlet temperature 80°C
As the ambient temperature changes, the unit capacity also changes
If the specifications and parameters are changed due to product improvement, the actual nameplate parameters shall prevail.
