Kolant Solar PV direct drive Solar Heat Pump

Photovoltaic and network power are connected to heat pump power supply at the same time, and the green power is directly driven. No need inverter or transformer to change solar DC electricity to AC power. So the efficiency will be higher than normal heat pump. The green solar power can be tracked in real time and given priority. When the photovoltaic output is insufficient, the electricity network power can be automatically introduced to ensure the stability of the unit. When there is no solar electricity at all, it can be driven only by grid power, and the system can be intelligently controlled and supervised remotely. In the whole process, no need battery.

Kolant Cross-industry integrated new energy

uses innovative green energy modes such as solar power generation, wind energy storage and photovoltaic power storage with heat pump energy consumption, realizing seamless switching between dual power inputs, giving priority to photovoltaic energy without secondary conversion, greatly reducing the energy consumption . Kolant solar PV direct drive heat pump is the first choice for green energy saving.

Kolant Enthalpy-Increasing and Inverter technology

Ultra-low temperature and more energy-saving at -35℃ stable operation,
multi-energy integration scheme,
quieter and more comfortable,
multi-noise reduction,
less temperature fluctuation.

Kolant Solar PV direct drive solar heat pump Striking characters distinguishing from other products.

Sunny mode, zero electricity cost for cooling/heating and DHW.

When the weather is sunny, and the photovoltaic system can fully meet all the electricity demand, realizing “zero electricity fee” for cooling/heating. Intelligent compensation system for photovoltaic power generation in power grid

Cloudy mode, intelligent compensation, zero worry.

In rainy weather, when the sunshine is insufficient, the photovoltaic system provides a power grid to supplement photovoltaic power generation and sub-supply, and intelligently compensates the commercial power to ensure the stable operation of the unit.

Night mode, direct power supply from power grid.

During the night, the photovoltaic power generation system does not generate electricity, and the power grid compensates the power grid to supplement all the power supply of photovoltaic power generation, and the energy consumption is equivalent to that of the conventional inverter heat pump.

Stable

The water and electricity are separated, and multiple protections are provided. It still runs stably in the cold climate of-35 C with ultra-low noise and a full DC fan motor, which has a longer service life.

All in one

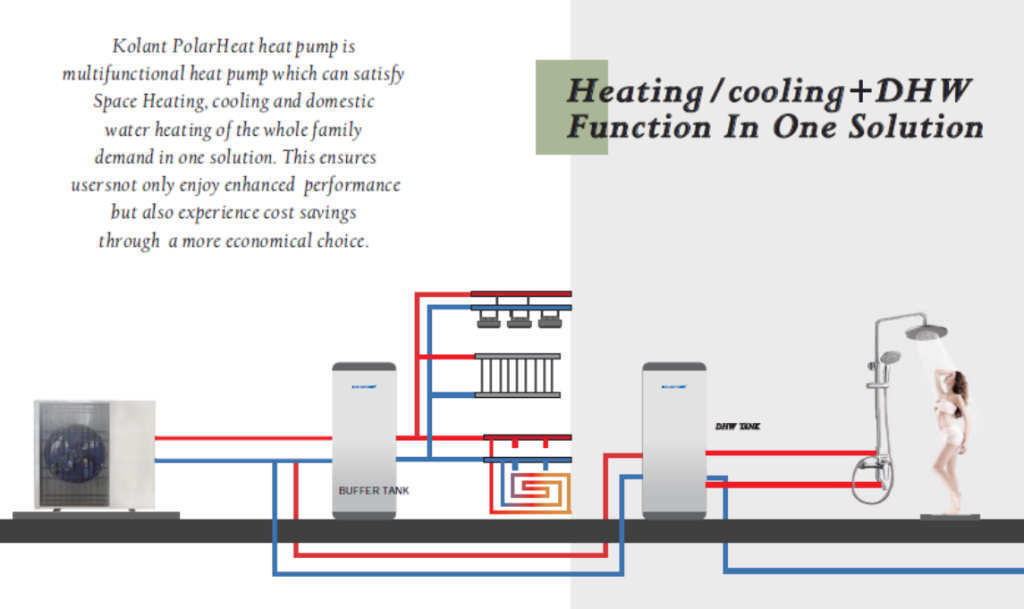

The heat pump has a dedicated high-efficiency compressor to realize the three functions of heating, cooling and hot water.

Modbus

Built inside Modbus protocol to enable distributor or customer to use any other controller to control the heat pump.

Solar PV direct driving heat pump Specification

Models	Air temp/outlet water temp	GFRB-85H/N8 -BBPEEVI	COP	GFRB-110H/N8 -BBPEEVI	COP	GFRB-150H/N8 -BBPEEVI	COP	GFRB-185H/N8 -BBPEEVI	COP	GFRB-240H/N8 -BBPEEVI	COP
Heating capacity/Power input (KW)	at A20/W35°C	10.6/1.89	5.61	14.42/2.88	5.01	21.1/3.89	5.42	22.8/4.4	5.18	29.5/6.01	4.91
	at A7/W35°C	8.59/1.87	4.59	10.6/2.55	4.16	14.7/3.31	4.44	18.8/4.4	4.27	23.1/5.34	4.33
	at A7/W45°C	7.91/2.23	3.55	9.97/3.14	3.18	13.5/4.1	3.29	17.8/5.24	3.4	22.6/6.11	3.7
	at A2/W35°C	7.65/1.81	4.23	9.54/2.49	3.83	13.08/3.21	4.07	16.92/4.31	3.93	20.29/5.38	3.77
	at A2/W45°C	7.04/2.15	3.27	8.97/3.06	2.93	12.02/3.97	3.03	16/5.12	3.13	18.7/6.4	2.92
	at A-12/W41°C	5.9/2.45	2.41	6.3/2.7	2.33	10.2/4.35	2.34	11.6/5.04	2.3	14.7/5.88	2.5
	at A-20/W41°C	5.4/2.56	2.11	5.61/2.72	2.06	8.9/4.23	2.1	10.5/4.97	2.11	13.7/5.78	2.37
Cooling Capacity/Power input(KW)	at A35/ W18ºC	9.2/2.7	3.41	11/3.3	3.33	13.9/4.2	3.31	15.6/4.8	3.25	20.1/6.2	3.24
Cooling Capacity/Power input(KW)	at A35/W7ºC	7.2/2.73	2.64	8.6/3.4	2.53	9.8/3.77	2.6	10.5/4.2	2.5	13.5/5.09	2.65
Max.current (A)		18		19		28		14.3		18.1
Max power input		4KW		5KW		6KW		7KW		9KW
Solar working max voltage		340VDC
Electric supply		230V/50~60HZ				400V/50~60HZ		400V/50~60HZ
Max.Outlet water temperature		60oC
Working temperature range (°C)		-30 ~ 43
Refrigerant circuit	Refrigerant	R32
	DC Inverter compressor	MITSUBISHI		MITSUBISHI		MITSUBISHI		MITSUBISHI		MITSUBISHI
	Heat exchange	Copper and Hydrauphilic Aluminum Fin
	Air flow (m3/h)	2400				5800		6000		7000
Water circuit	Heat exchanger	High efficiency tube in shell heat exchanger
	Inlet/Outlet pipe size	DN25(G1″)		DN25(G1″)		DN25(G1″)		DN25(G1″)		DN25(G1″)
	Water flow (m3/h)	≥1.5		≥1.8		≥2.5		≥3		≥3.9
	permitted pressure	≤0.8MPa
Unit dimensions WxHxD (mm)		960820380		960820380		9601270380		9601270380		10301340390
Pakage dimensions WxHxD (mm)		1040940502		1040940502		10401390502		10401390502		11151510510
Net weight (Kg)		68		68		108		108		128
Gross weight (Kg)		85		85		125		125		145
Noise level (dB(A))		56		56		59		59		60
Loading quantity for 20’/40′ container		44/88		44/88		22/44		22/44		22/44
