R290 75℃ High Temp All in one hot water heat pump
- Easy install
- 75℃ hot water 24 hours
- Save energy
- Stable supply
- No fuel No oil
- R290 echo refrigerant

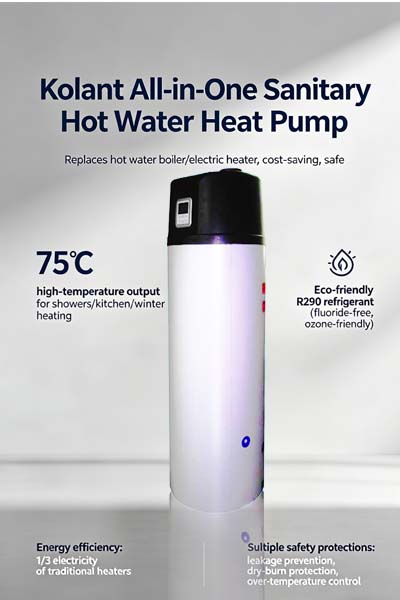

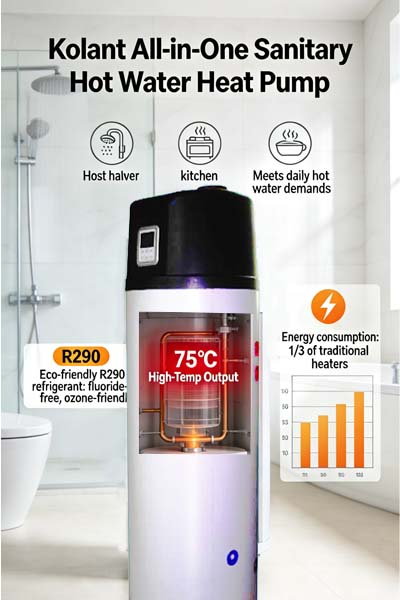

Kolant all in one sanitary hot water heat pump is ideal system to replace current hot water boiler or electric heater with much more cost saving and more safety.
Its standout feature is the 75℃ high-temperature output, meeting daily demands like hot showers, kitchen use, and winter heating.
The advanced heat pump system delivers exceptional energy efficiency, consuming only 1/3 of the electricity of traditional electric water heaters, slashing monthly energy bills significantly.
Equipped with multiple safety protections—including leakage prevention, dry-burn protection, and over-temperature control—it operates reliably and safely for long-term use. Suitable for various home environments, it balances environmental friendliness, high efficiency, and practicality, offering a premium hot water solution for families.
Striking characters:
1.Super easy installation. Complete DIY plug and play system.
2. Special compact design for sanitary hot water of family use suitable for indoor installation.
3.No fuel tubes and storage, no potential danger from oil leakage, fire, explosion,etc.
4.Max. outlet waterTemperature: 75 °C.
5. Automatic star-up and shut down, automatic defrosting. Can be controlled by timer setting.
6. High Efficiency and energy saving with R290, 1/4 operation cost of electric heater.
7. Multiple function: with different installation, the unit can work as heat pump, fresh air blower, dehumidifier, or an energy recovery equipment.
Product Features
-
Efficient Water Heating: Absorbs heat from the air to heat and store water in the tank, ensuring hot water availability 24 hours a day.
-
Stable Hot Water Supply: Guarantees sufficient and stable water flow and temperature, preventing fluctuations and scalding.
-
Instant Heating: Ideal for hot water circulation systems, providing immediate heating without waiting, enhancing comfort and reducing water waste.
-
Integrated Cooling Function: Generates cool air during the heating process, which can be directed indoors for cooling purposes.
Product Advantages
-
Premium Tank Material: Inner tank made from international standard SUS 304/SUS 316 L/Duplex 2205 stainless steel, ensuring hygiene, safety, corrosion resistance, and durability.
-
Automated Welding Technology: Utilizes advanced automatic welding for precise and stable joints, significantly extending product lifespan.
-
Versatile Water Tank Capacity: Can be equipped with water tanks ranging from 200 L to 300 L, compatible with heat pumps, wall-mounted boilers, and solar water heaters for integrated system use.
-
High-Density Insulation: Water tank exterior features high-density polyurethane foam insulation, forming a single mold with a 360-degree thermal lock, minimizing heat loss and providing excellent insulation.
-
Durable & Stylish Casing: Outer casing made from galvanized color steel, offering a high-end, fashionable, and aesthetically pleasing appearance.
-
Optimized Inlet/Outlet Design: Enhanced design significantly improves water flow efficiency, resulting in a more rational system layout and easier tank installation.
-
Equipped with Electric Auxiliary Heating: Provides backup heating for insufficient hot water supply or maintenance needs.
-
Solar Energy Compatibility: Can be customized to integrate with solar energy systems for greater energy savings.
-
Branded Components: Utilizes renowned brand compressors and fluorine systems, ensuring a more stable and energy-efficient overall system.
Technique Data
| MODEL | SHW-200/N9 | SHW-250/N9 | SHW-300/N9 | ||
| Power supply | V/Ph/Hz | 220~240V-1Ph-50Hz | |||
| Water tank capacity | L | 200 | 250 | 300 | |
| Runnning Ambient temp. | °C | -5~43 | |||
| Water outlet Temp | °C | 25~75 | |||
| Water heating | Rated Heating Capacity[1] | KW | 3.8 | ||
| Rated input | KW | 0.96 | |||
| Rated Current | A | 4.4 | |||
| Max.input consumption [2] | KW | 1.5 | |||
| Max. input Current [2] | A | 6.9 | |||
| Compressor | Compressor Qty. | 1 | |||
| Compressor | Rotary | ||||
| Refrigerant | R290 | ||||
| Brand | Mitsubishi | ||||
| Capacitor | uF | 25 | |||
| Fan motor | Input(hi/lo) | W | 142/135 | ||
| Capacitor | uF | 2 | |||
| Speed(hi/lo) | r/min | 1350/950 | |||
| Water pipeline | Water inlet pipe | 3/4″(DN20) | |||
| Water outlet pipe | 3/4″(DN20) | ||||
| Limber pipe | 3/4″(DN20) | ||||
| Condensation pipe | 1/2″(DN15) | ||||
| Unit dimension(W*H*D) | mm | Φ570*1723 | Φ650*1696 | Φ650*1896 | |
| Packing dimension(W*H*D) | mm | 650*1897*670 | 730*1870*750 | 730*2070*750 | |
| Net weight | Kg | 70 | 80 | 90 | |
| Max.operation weight (full loaded) | Kg | 370 | 380 | 390 | |
| Refrigerant type | R410A | ||||
| Electric Heater | KW | 2.0/3.0 | |||
| Noise level | dB(A) | 50 | |||
| Remarks | |||||
| [1]Measurement conditions: Instant heating: Ambient temperature 20°C/15°C(DB/WB), heating the water from 15°C to 55°C. [2] Does not include auxiliary electric heating power and current. |
|||||
