Bomba de calor geotérmica com inversor DC com COP 9,7 elevado
High COP 9 Geothermal Ground source-Water source heat pump
02/14/2014
DC inverter split heat pumps to replace gas boiler-9KW,11KW,15KW
03/07/2014
Multifuncitional geo water source heat pump-R32 and R290
Kolant geo water source heat pump unique Characters than other similar heat pumps
Kolant inverter geothermal heat pump Description
Kolant DC Inverter Geothermal Heat Pump stands out as a high - efficiency heating solution, boasting an impressive high Coefficient of Performance (COP) that ensures exceptional energy savings. Leveraging advanced DC inverter technology, this heat pump operates with remarkable precision, making it a top choice for heating, cooling and domestic hot water needs.
A key highlight of this system is its ability to automatically adjust the output capacity in real - time according to the actual heating requirements. Whether the outdoor temperature fluctuates or the indoor heating demand changes, the heat pump swiftly responds. It avoids the frequent on - off cycles of traditional heating systems, which not only enhances comfort by maintaining a stable indoor temperature but also significantly reduces energy consumption and operational noise.
With its reliable performance, high energy efficiency, and intelligent capacity adjustment, the Kolant DC Inverter Geothermal Heat Pump delivers consistent and cost - effective heating, providing users with a comfortable and eco - friendly heating experience throughout the cold seasons.
Kolant inverter geo heat pump Lowest heating power input is 200w/hour. Always trying to keep the lowest frequency working mode to get the highest COP to save energy the most.
Many new DC inverter technologies are adopted in Kolant inverter water source geo heat pump.
It can also be work perfectly with solar heating system to get the most saving.
Kolant inverter geo water source heat pump is the best energy saving products for your home heating,cooling and hot water usage.
It is conformed to all newest European government refund standard.
Kolant inverter geo water source heat pump is multifunction heat pump with Heating, cooling and domestic hot water function in one solution.
Geothermal Ground source/ Water source heat pump single unit with slim size with capacity of 7-210KW

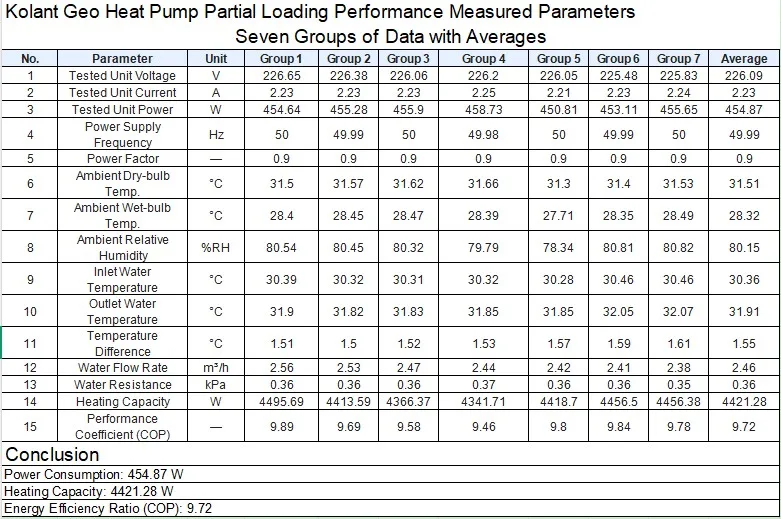

COP >9.7 with Lab Testing Data for Kolant Geo water source heat pump
Kolant geo inverter heat pump main Characters:
1. Extremely energy saving, super cost saving with best COP.
At European EN14511 standard condition W10°C/W35°C, COP>5.4.
At partial loading condition, the tested COP =9.7.
10 Times Energy Saving as Normal Gas or Petrol Heater.
2. Suitable for Frigid zone area. No capacity loss in even -45C air temp.
3. Quite unit, free of neighbor complain.
4. Installation is easy and flexible.
5. Can be connected with solar system.
6. All water access parts are stainless steel and copper to keep safe, healthy and non-pollution.
High quality parts for reliability and save maintenance cost:
Our parts are always chosen with the top brand in the worldHeat exchanger: Stainless steel SU316 plate heat exchanger.
The compressor: Mitsubishi, GMCC twin rotary inverter type
Electronic expansion valve for accurate control to increase COP 10% than other heat pumps.
Four way valve: Saginomiya brand of Japan or Sanhua brand
These parts enable our heat pump to be trouble free products.

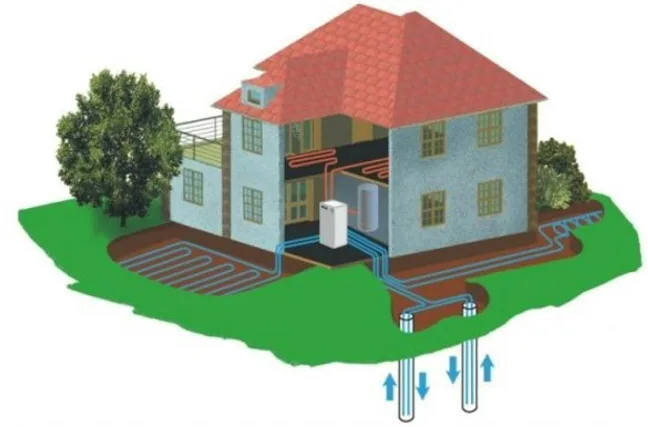

Flexible installation of typical water source heat pump application:
Geothermal heat pump vertical ground loop
Geothermal heat pump horizontal ground loop
Geothermal Heat Pump for Lake, Pond and River
Geothermal heat pump with cooling tower

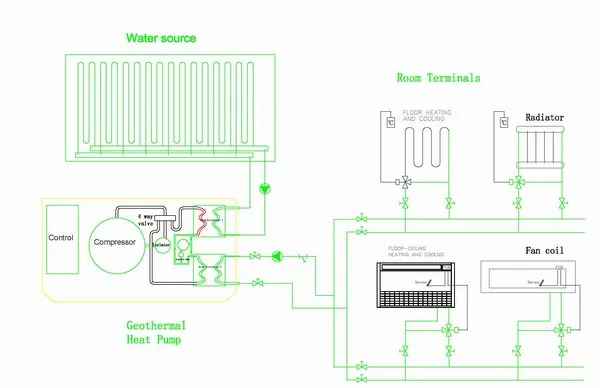

Water source heat pump (ground source heat pump) working theory diagram and application

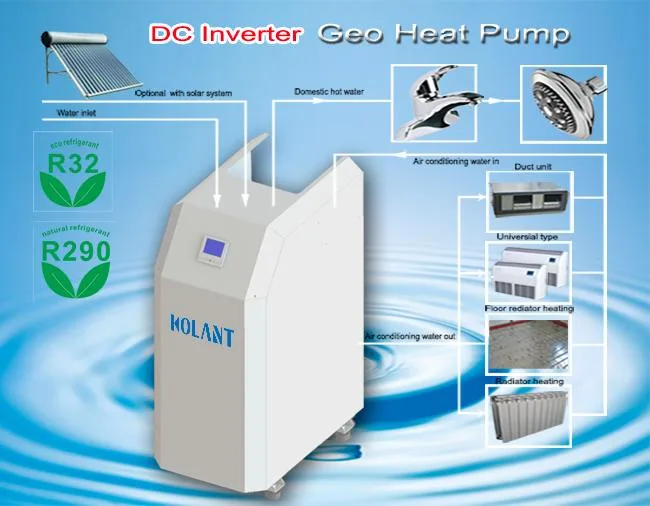

Heating, cooling and domestic hot water in one solution
Kolant Geo water source heat pump specification
| Modelo | SYRB-60ECH | SYRB-120ECH | SYRB-180ECH | ||
| Alimentação eléctrica | V/Hz/Ph | 220-240/50-60/1 | 220-240/50-60/1 | 220-240/50-60/1 | |
| Heating | Nominal capacity(W10/W35) | kW/h | 7 | 13.1 | 17.9 |
| Power input | KW | 1.28 | 2.4 | 3.3 | |
| COP | - | 5.47 | 5.46 | 5.42 | |
| Nominal capacity(W10/W55) | kW/h | 5.76 | 11.33 | 14.55 | |
| Power input | KW | 1.34 | 2.88 | 3.73 | |
| COP | - | 4.3 | 3.93 | 3.9 | |
| Capacity(B0/W35) | kW/h | 5.37 | 10.35 | 14.14 | |
| Power input | W | 1.22 | 2.33 | 3.2 | |
| COP | - | 4.4 | 4.44 | 4.42 | |
| Cooling | Nominal capacity(W30/W18) | kW/h | 4.1 | 11.1 | 15.2 |
| Power input | KW | 0.7 | 1.9 | 2.65 | |
| EER | - | 5.86 | 5.84 | 5.74 | |
| AQS | Nominal capacity | kW/h | 6.52 | 12.3 | 15.8 |
| Power input | KW | 1.28 | 2.78 | 3.61 | |
| COP | - | 5.09 | 4.42 | 4.38 | |
| Rated/Max.outlet water temp. | °C | 7~45/60 | |||
| Rated water flow rate | m³/h | 1 | 2 | 3 | |
| Controller | Micro processor based digital wire controller with LCD display | ||||
| Compressor | Tipo | - | Twin Rotary | ||
| Qty. | Nos. | 1 | |||
| Refrigerante | - | R32 | |||
| Heat exchanger | - | Plate Heat Exchanger | |||
| Water connection | Inlet&Outlet | inch | 3/4" | 1'' | 1'' |
| Nível de ruído | dB(A) | 42 | 46 | 48 | |
| Net dimension | W*D*H | mm | 982*606*634 | 982*606*634 | 982*606*634 |
| Peso líquido | kg | 52 | 90 | 135 | |

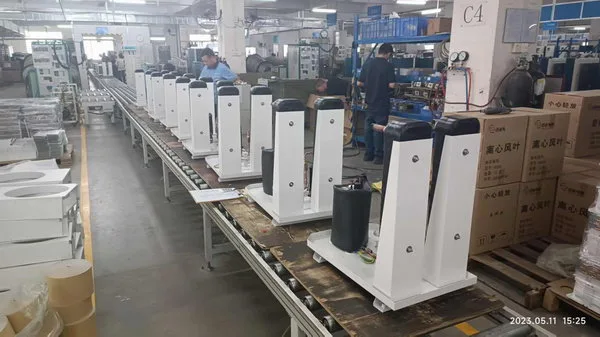

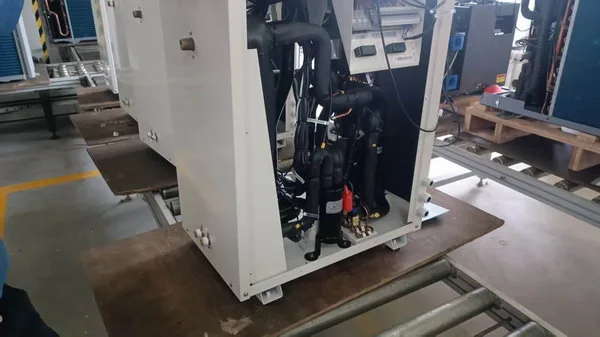

Kolant geo heat pump production and parts show
